The Big Turbo Upgrade you have been waiting for from Dinan!

N20 & N55 Big Turbos
For the F22/23 228i F30/31/34 328i F32/36 428i
F22/23 M235i F30/34 335i F32/36 435i
Consult listings below for release date applicable to your model.

Part Number:

D310-0110
N55 Big Turbo Upgrade for the BMW F22/23 M235i, F30/34 335i
& F32/36 435i w/ Electronic Wastegate


Retail Price: $1499.00
Core Charge: $1500.00

Availability: Pre-Order Only. Available 4/1/16.
For the racing enthusiast or those just looking for the best, this is the ultimate upgrade to fully maximize the power output of your EWG N55 engine. The compressor wheel inside the turbocharger is increased in size allowing ~30% greater flow thus enabling additional boost pressures at higher engine speeds while retaining efficiency. These are rebuilt factory turbos that are machined to Dinan specifications along with an upgraded thrust system to ensure reliable and prolonged life. In order to attain maximum advertised power gains these big turbos will need to be paired with DINANTRONICS Stage 4, as well as Dinan's intercooler to fully regulate the boost increase and deliver a polished product although the exhaust and intake are also recommended.

Benefits of the Dinan Big Turbo for the EWG N55 Engine:
  • Factory turbo that is machined to Dinan specifications with an upgraded thrust system.
  • Larger billet compressor/impeller wheel that allows ~30% greater flow over stock which then enables additional boost to be realized while retaining efficiency.
  • Turbo assembly (D310-0110) is compatible with electric wastegate vehicles only.
  • Peak power: 445 HP @ 6000 RPM and 455 ft-lbs @ 3000 RPM and a max gain of 128 HP @ 6000 RPM and 113 ft-lbs @ 6000 RPM when coupled with other DinanPerformance upgrades. (Data from F22 M235i.) 448 HP @ 6500 RPM and 417 ft-lbs @ 3000 RPM and a max gain of 152 HP @ 6500 RPM and 123 ft-lbs @ 6500 RPM when coupled with other Dinan Performance upgrades. (Data from F32 435i. Other variants may differ.)
  • Dinan Installation instructions detail a procedure which is quicker than BMW's turbo replacement procedure saving the end-user money and time at the shop.
  • Includes o-rings and gaskets needed for installation.
  • Factory matching new car warranty (4yr/50k).
  • CARB EO is pending.

Part Numbers:

D310-0120
N20 Big Turbo Upgrade for the BMW F22/23 228i, F30/31/34 328i, F32/36 428i

Retail Price: $1299.00
Core Charge: None

Availability: N20 Mechanical Wastegate turbos available now. Tuning (DINANTRONICS) for N20 Electronic Wastegate is not yet available but is forthcoming.
D310-0115
N55 Big Turbo Upgrade for the BMW F30 335i w/ Mechanical Wastegate


Retail Price: $1499.00
Core Charge: None

Availability: Pre-Order Only.
Available 3/21/16.




For the racing enthusiast or those just looking for the best, this is the ultimate upgrade to fully maximize the power output of your N20 or MWG N55 engine. The compressor wheel inside the turbocharger is increased in size allowing ~30% greater flow thus enabling additional boost pressures at higher engine speeds while retaining efficiency. These aren't standard rebuilds but rather brand new units with a new stock turbine custom cast and manufactured with an upgraded thrust system to ensure reliable and prolonged life. In order to attain maximum advertised power gains these big turbos will need to be paired with DINANTRONICS Stage 4, as well as Dinan's intercooler to fully regulate the boost increase and deliver a polished product although the exhaust is also recommended.

Benefits of the Dinan Big Turbo for the N20 & MWG N55 Engines:
  • No core charge or core return is required.
  • Brand new upgraded turbo that is custom cast and manufactured with an upgraded thrust system.
  • Larger billet compressor/impeller wheel that allows ~30% greater flow over stock which then enables additional boost to be realized while retaining efficiency.
  • Brand new stock turbine.
  • Turbo assembly is compatible with both the mechanical/vacuum wastegate and electronic wastegate vehicles in the case of the N20 engine. This N55 turbo however is only compatible with the mechanical / pneumatic wastegate. See below for the N55 electronic wastegate variant.
  • Peak power:
    • N55: 428 HP @ 5500 RPM and 443 ft-lbs @ 4500 RPM and a max gain of 122 HP @ 6000 RPM and 107 ft-lbs @ 6000 RPM when coupled with otherDinan Performance upgrades (Data from F30 335i MWG w/ MPPK and automatic transmission. Other variants may produce different results).
    • N20: 345 HP @ 5500 RPM and 336 ft-lbs @ 4000 RPM and a max gain of 84 HP @ 6500 RPM and 77 ft-lbs @ 5500 RPM when coupled with other DinanPerformance upgrades.
  • Dinan Installation instructions detail a procedure which is quicker than BMW's turbo replacement procedure saving the end-user money and time at the shop.
  • Includes o-rings and gaskets needed for installation.
  • Factory matching new car warranty (4yr/50k).
  • CARB EO is pending.
Stage 4 DINANTRONICS
For the F22/23 228i F30/31/34 328i F32/36 428i
F22/23 M235i F30/34 335i F32/36 435i
Consult listings below for release date applicable to your model.

The desire/need for a track inspired monster for everyday street use has never been so real... and we aim to please...

With the release of the new Dinan Big Turbos for the F3x N20 and N55 engines the stage 4DINANTRONICS Performance Tuner is now becoming available for applicable models. This stage of tune is specifically designed to optimize the top end power that comes inherently with an upgraded turbo. While in stock, and lightly tuned, configurations the engine tends to fall off rather dramatically after 5000-5500 RPM with the big turbo installed the the cars continue to make additional power all the way to red-line. This results in some very impressive maximum gains of up to 152 HP and 123 lb-ft of torque in certain instances.

There are a variety of different performance data set numbers listed below depending on application and other factors.

DINANTRONICS Performance Tuner for the F22 / F23 M235i,
F30 / F34 335i (w/ MPPK, Auto Trans.) & F32 / F36 435i (w/ MPPK, Auto Trans.)
ONLY applicable to cars equipped with an electronic wastegate.
Pre-order Only. Available 4/1/16.

Retail Price:
D440-1641-ST4
 Stage 4                                      $2824.00

BMW Factory Ratings:
320 HP, 330 lb-ft torque (326 HP, 379 lb-ft Measured)

With DINANTRONICS Tuner, Dinan Exhaust, CAI, Dual Intercooler and Big Turbo:
445 HP, 455 lb-ft torque


DINANTRONICS Performance Tuner for the
F30 / F34 335i (w/ MPPK, Manual Trans.) & F32 / F36 435i (w/ MPPK, Manual Trans.)
ONLY applicable to cars equipped with an electronic wastegate.
Pre-order Only. Available 4/1/16.

Retail Price:
D440-1641-ST4
 Stage 4                                      $2824.00

BMW Factory Ratings:
320 HP, 317 lb-ft torque (327 HP, 353 lb-ft Measured)

With DINANTRONICS Tuner, Dinan Exhaust, CAI, Dual Intercooler and Big Turbo:
446 HP, 436 lb-ft torque

DINANTRONICS Performance Tuner for the
F30 335i (w/ MPPK, Automatic Trans.)
ONLY applicable to cars equipped with a mechanical wastegate.
Pre-order Only. Available 3/21/16.

Retail Price:
D440-1640-ST4
 Stage 4                                      $2824.00

BMW Factory Ratings:
320 HP, 332 lb-ft torque (320 HP, 365 lb-ft Measured)

With DINANTRONICS Tuner, Dinan Exhaust, CAI, Dual Intercooler and Big Turbo:
428 HP, 443 lb-ft torque

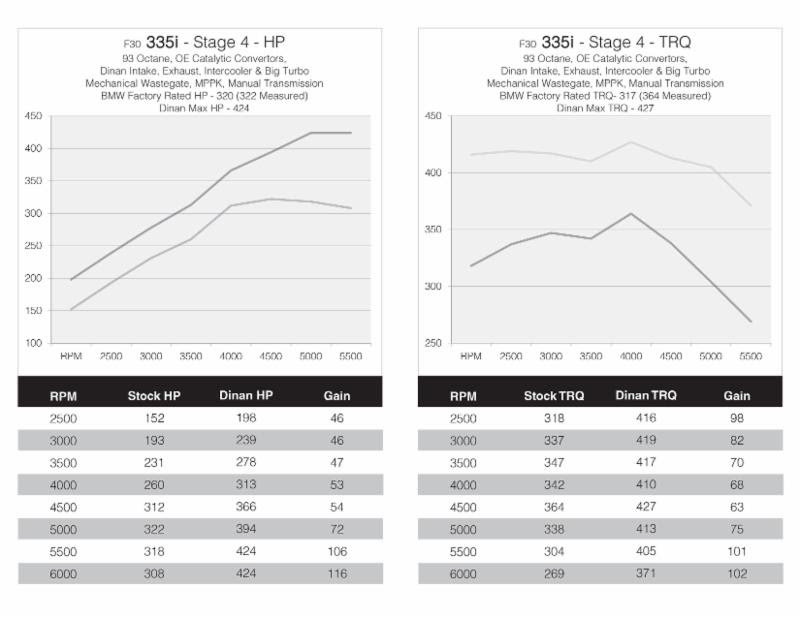

DINANTRONICS Performance Tuner for the
F30 335i (w/ MPPK, Manual Trans.)
ONLY applicable to cars equipped with a mechanical wastegate.
Pre-order Only. Available 3/21/16.

Retail Price:
D440-1640-ST4
 Stage 4                                      $2824.00

BMW Factory Ratings:
320 HP, 317 lb-ft torque (322 HP, 364 lb-ft Measured)

With DINANTRONICS Tuner, Dinan Exhaust, CAI, Dual Intercooler and Big Turbo:
424 HP, 427 lb-ft torque
DINANTRONICS Performance Tuner for the F30 / F34 335i & F32 / F36 435i
ONLY applicable to cars equipped with an electronic wastegate.
Pre-order Only. Available 4/1/16.

Retail Price:
D440-1639-ST4
 Stage 4                                      $2824.00

BMW Factory Ratings:
300 HP, 300 lb-ft torque (315 HP, 330 lb-ft Measured)

With DINANTRONICS Tuner, Dinan Exhaust, CAI, Dual Intercooler and Big Turbo:
448 HP, 417 lb-ft torque

DINANTRONICS Performance Tuner for the F30 335i
ONLY applicable to cars equipped with a mechanical wastegate.
Pre-order Only. Available 3/21/16.

Retail Price:
D440-1638-ST4
 Stage 4                                      $2824.00

BMW Factory Ratings:
300 HP, 300 lb-ft torque (303 HP, 331 lb-ft Measured)

With DINANTRONICS Tuner, Dinan Exhaust, CAI, Dual Intercooler and Big Turbo:
426 HP, 418 lb-ft torque
DINANTRONICS Performance Tuner for the
F22 / F23 228i, F30 / F31 / F34 328i & F32 / F36 428i
ONLY applicable to cars equipped with an electronic wastegate.
Coming Soon.

Retail Price:
D440-1632-ST4
 Stage 4                                      $2051.00

BMW Factory Ratings:
240 HP, 260 lb-ft torque (268 HP, 290 lb-ft Measured)

With DINANTRONICS Tuner, Dinan Exhaust, CAI, Dual Intercooler and Big Turbo:
Coming Soon.
DINANTRONICS Performance Tuner for the F30 328i
ONLY applicable to cars equipped with a mechanical wastegate.

Retail Price:
D440-1631-ST4
 Stage 4                                      $2051.00

BMW Factory Ratings:
240 HP, 260 lb-ft torque (268 HP, 287 lb-ft Measured)

With DINANTRONICS Tuner, Dinan Exhaust, Dual Intercooler and Big Turbo:
345 HP, 336 lb-ft torque


DINANTRONICS Performance Tuner Description

The DINANTRONICS Performance Tuner is a highly engineered and sophisticated piece of computer hardware and software that enhances engine performance, without negating or voiding your new car warranty coverage and without affecting long term reliability or the functionality of on-board diagnostic systems. It is also the only tuning device emissions legal in all fifty states. The ultimate objective of developing this piece of technology was to provide the ability to control every signal entering and exiting the BMW factory Engine Control Unit. These items are unique to Dinan and together they embody the apex of performance engineering in a powerful, reliable, and warrantied package.
Upgraded Fuel Pump
For the F3x N20 & N55 Engines
(Full Assembly or Upgrade Kit)



Part Numbers:

R420-0002
N20/N55 F-Series Upgraded
Fuel Pump (Full Assembly)

Retail Price: $899.00
R420-0001
N20/N55 F-Series Upgraded
Fuel Pump Kit(Upgrade Kit)

Retail Price: $229.00


With increased power comes increased demand on the fueling system to satiate that demand. The stock fuel pump is incapable of delivering consistent fuel flow at low fuel tank levels for high output applications under heavy load resulting in the possibility of inconsistent power delivery.Dinan's upgraded fuel pump enhances the pump's ability to draw fuel, and allows full flow of fuel to the engine during high demand operation. This means that at no time will you suddenly experience a loss of power due to inadequate fuel supply and you can push the car hard continuously during a track event or other high demand application without fear. Perhaps best of all is the Dinan modified fuel pump can be properly controlled by the stock DME resulting in no faults or warnings on the iDrive. Just consistent power all the way to redline.

For those that want a fully assembled and modified fuel pump please use R420-0002. For those who wish to modify their existing fuel pump using a Dinan supplied component kit use R420-0001.

Benefits of the Dinan N20/N55 F-Series Upgraded Fuel Pump:
  • Allows consistent fuel flow to the engine during high demand operation.
  • Stock DME can properly control the Dinan modified pump so no faults or warning are presented.
  • Dinan components consist of CNC stainless steel adapters, stainless clamps, and high quality automobile grade submersible fuel hose.
  • Includes new modified fuel pump and O-Rings which must be replaced during pump installation.
  • No other modifications needed.
  • NO DINAN WARRANTY
  • RACING ONLY PART
Free Flow Stainless Exhaust
For the F85 X5M F86 X6M



Part Numbers:

D660-0054
Free Flow Stainless Exhaust w/ Polished Tips For the BMW F85 X5M & F86 X6M

Retail Price: $2059.00
D660-0054-BLK
Free Flow Stainless Exhaust w/ Black
Tips For the BMW F85 X5M & F86 X6M

Retail Price: $2059.00


The F85 X5M and F86 X6M are the quintessential SUV in terms of power and performance with accolades in numerous periodicals crowning them the pinnacle of their class. With the possibility of putting down over 700 HP with a base tune these vehicles are no slouch. Dinanengineers wanted to match this impressive feat with an equally impressive exhaust tone that let those around these SUV's hear the power that lies beneath the hood as well as be able to show it. Take a listen to the video clip below and judge for yourself if we were successful.

The exhaust system was designed to improve exhaust flow by reducing back pressure, resulting in increased power output and a deep sound that is civilized when you want it to be, and pleasantly aggressive under hard acceleration.  Dinan also incorporates a Helmholtz chamber design that reduces resonance or "drone" at low RPM. The technology within the can is matched in impressiveness by its outward appearance and design as the system is built to exacting specifications to ensure a simplistic bolt-on installation. It is made from 100% 16 gauge 304 stainless steel and will resist corrosion for years to come. The design features quad 89mm (3.5") black ceramic exhaust tips for a tasteful, high-performance look.

Benefits of the Dinan Free Flow Exhaust for the F85 X5M and F86 X6M:
  • 8 HP @ 6000 RPM, 7 FT-LB @ 6000 RPM
  • Quad 89mm (3.5") laser engraved black ceramic exhaust tips
  • Enjoyably louder, sportier sound with a deep growl
  • Helmholtz chamber to reduce drone
  • Computer controlled valve limits noise during low speed driving; valve opens fully during high-load conditions to allow free flow
  • 100% 304 stainless steel construction
  • Bolt-on Installation
Performance Spring Set + Supplemental Ride
Quality & Handling Kit For the F30 340i (RWD Only)



Part Numbers:

D100-0931
Performance Spring Set
For the BMW F30 340i (RWD)

Retail Price: $299.00
D193-3201
Ride Quality and Handling Kit
For the BMW F30 340i (RWD)

Retail Price: $184.00

Only available for the RWD F30 340i. xDrive compatibility is forthcoming.


Suspension systems that not only transform the stance of the vehicle but also maintain ride quality and improve upon handling are what Dinan suspensions are known for. This is accomplished by pairing springs sets with bump stops, spring perches or both to maintain suspension travel resulting in a smooth ride while also improving mechanical grip and handling. This is what makes Dinan suspension systems unique. While we are able to sell each component separately it is highly recommend that both the spring sets and the supplemental ride quality and handling kits are used in tandem in order to maintain the Dinan quality standards our customers are used to. Experience the Dinan difference with this combination and enjoy the ride it provides.

Dinan's Performance Spring set for the F30 340i (non xDrive) provides greater control over body roll by virtue of carefully calibrated spring rates. Additionally, Dinan lowers the 340i by a full 1" in front and 1" in the rear for improved suspension geometry and an even more aggressive stance. The Dinan springs are CNC wound with high tensile chrome silicon wire and shot peened for stress relief to last the life of the car. The 25% increase in stiffness in front and 34% increase in the rear will reduce the rear suspension compression under acceleration and front suspension compression (or dive) under braking, giving your car a more controlled feel. TheDinan performance springs will also provide a noticeable improvement in grip, for high speed driving situations that will inspire confidence in your car's capabilities. The reduced body roll makes the steering more responsive to driver input and will be noticed at speeds as low as 20 mph, up to the top speed of the vehicle.

Benefits of the Dinan Performance Spring Set for the F30 340i (non xDrive):
  • 25% increase in spring stiffness in front, 34% increase in the rear.
  • Lowers the vehicle 1" in front and 1" in the rear
  • Preset to prevent spring sag
  • Compatible with both conventional and factory electronic shocks
NOTE - Dinan Performance Spring sets should be purchased and installed with the corresponding Ride Quality and Handling Kit to achieve the advertised ride height, performance, and ride quality. While not explicitly required, if the matching component is not purchased and installed you will get less than favorable results in the form of poor ride quality and improper handling traits. While we will maintain a full warranty on product defects, any claims against the car's improper handling/ride quality traits due to not purchasing the corresponding handling kit will not be warranted.
